Implementing True Zero-Copy Communication with iceoryx2

Christian Eltzschig - 14/06/2025

What Is iceoryx2

iceoryx2 is a decentralized, service-based inter-process communication (IPC) library designed for mission-critical, high-efficiency systems. It achieves low latency and high throughput using a communication paradigm known as zero-copy communication.

In this article, we'll explore the core concept of zero-copy communication and walk through how iceoryx2 implements it using a practical example from its publish-subscribe API.

The Concept of Zero-Copy Communication

The principle of zero-copy communication is similar to how shared pointers or references work in programming: instead of copying data, we share access to a single memory location.

In the same spirit, zero-copy inter-process communication avoids unnecessary data copies between processes. Data is produced once in a memory region that all endpoints can access, and a reference or offset to that memory is shared. This allows all participants to read the data directly, just like sharing a pointer to a struct on the heap - but across process boundaries.

In practice, this shared memory region could be:

POSIX shared memory
GPU memory
Memory-mapped hardware buffers

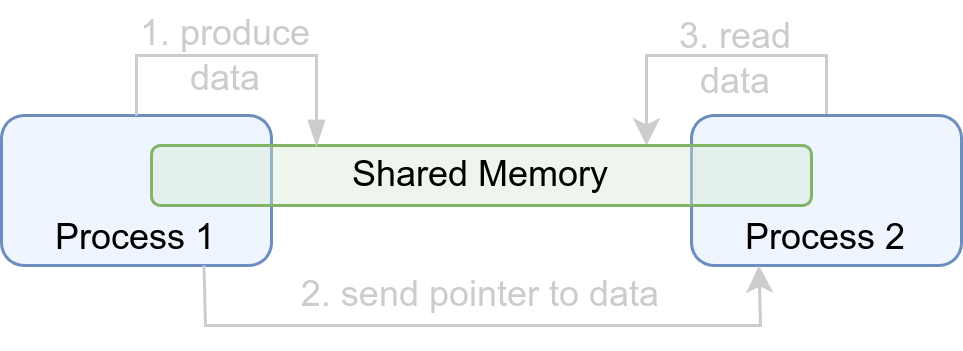

The critical aspect: the sender writes the data directly into shared memory. Then, the offset or index to that data is transferred to every receiver. No copies are involved after the data is created.

Hands-On: iceoryx2 in Action

We’ll now walk through the iceoryx2 publish-subscribe example, where data is sent by a publisher to multiple subscribers using zero-copy.

Deep Dive: When the publisher is created:
1. A shared memory object is created using shm_open.
2. It is resized via ftruncate to reserve enough space.
3. The segment is mapped into the process using mmap.

Sensor APIs often provide a pointer to the latest data:

let data_ptr = sensor_get_next_frame();

However, this is not zero-copy: the data resides in sensor-managed memory, and must be copied into shared memory before sending. For true zero-copy, we need the sensor to write directly into shared memory, provided by the zero-copy communication framework.

1. Produce Data into Shared Memory First, we acquire an uninitialized sample from the publisher. This is a chunk of memory from the publisher’s data segment, reserved for the user's payload. Under the hood, an allocator manages this memory block:
```
let mut uninitialized_sample =
    publisher.loan_slice_uninit(MAX_SIZE_OF_SENSOR_DATA_FRAME)?;
```
Next, the sensor writes directly into this memory:
```
sensor_get_next_frame(uninitialized_sample.payload_mut());
```
- Deep Dive: In iceoryx2 the memory of the data segment is managed by a pool allocator. It partitions memory into fixed-size regions, which avoids fragmentation and allows predictable allocation times - essential for real-time and safety-critical systems.

  The call to loan allocates a chunk of memory from this pool allocator and returns it to the user.
2. Send Pointer To Data Once the data is produced, the sample is marked as initialized and published:
```
let sample = unsafe { uninitialized_sample.assume_init(); }
sample.send()?;
```

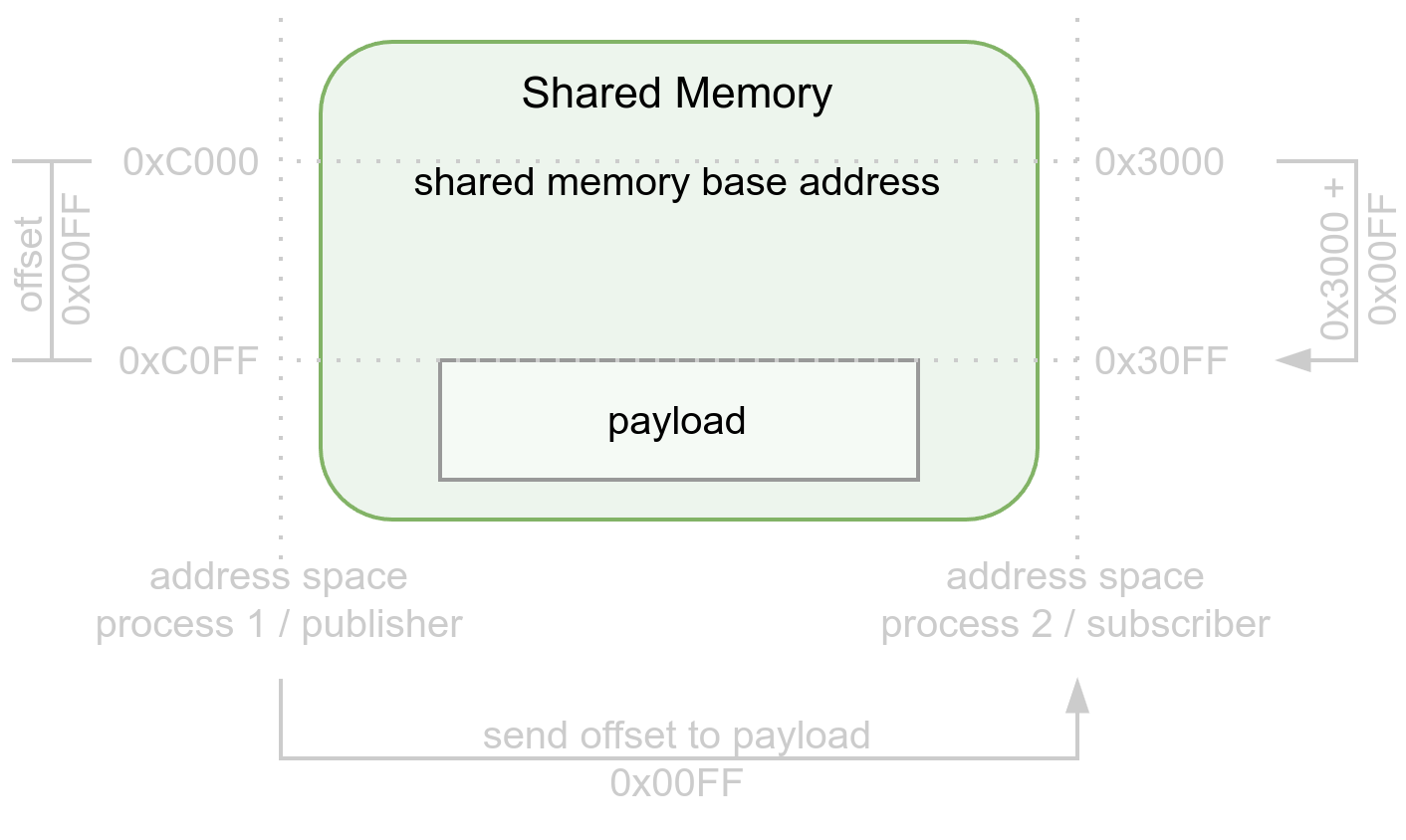

- Deep Dive: Only an offset to the memory location is sent to the subscribers, not the actual data. Each process has its own virtual memory layout, so we cannot directly share pointers. Instead:
  - The publisher calculates an offset from the base of the shared memory segment.
  - The subscriber adds this offset to its local mapping of that segment.
  - A valid pointer to the received data is reconstructed from the offset.
  To transfer the offset, an inter-process communication mechanisms like message queues, pipes, unix domain sockets, or shared memory queues can be used.
3. Read Data Upon receiving the offset, the subscriber can reconstruct a pointer and access the data directly:
```
if let Some(sample) = subscriber.receive()? {
  process_sensor_data(sample.payload());
}
```
- Deep Dive: Before a subscriber can consume the received data:
  1. It must map the publisher’s shared memory using shm_open and mmap. This happens when the subscriber is created.
  2. It polls for incoming offsets from the publisher. If this is not desired, the subscriber can be combined with a listener port from the event messaging pattern that is able to wait for incoming data.
  3. On receipt, it reconstructs the pointer from the offset and reads the data — no copying involved.
  This mechanism ensures the subscriber can consume the data efficiently and with minimal latency.

Summary

The key difference between traditional communication (e.g., sockets with serialization) and zero-copy inter-process communication lies in who owns and provides the memory.

In classical inter-process communication, the user provides a buffer to the system.
In zero-copy inter-process communication, the framework provides the memory which is shared between all endpoints.

With iceoryx2, publishers produce data directly into shared memory. Subscribers receive only an offset, which they resolve into local pointers.

This guarantees true zero-copy communication. No serialization, no redundant allocations, no data duplication - just high-performance, low-latency data exchange.
